Single pendulum handheld welding gun

Handheld Welding Head Handheld Welding Head

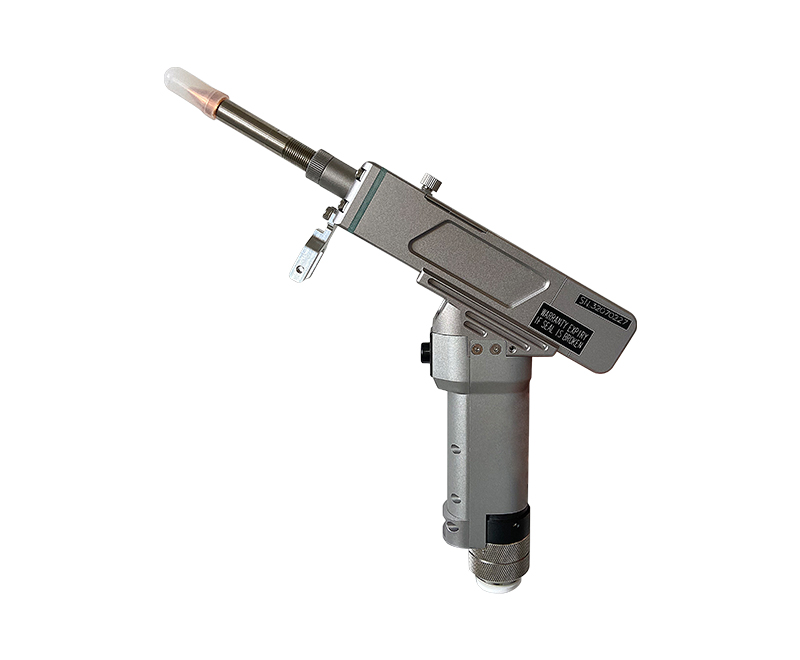

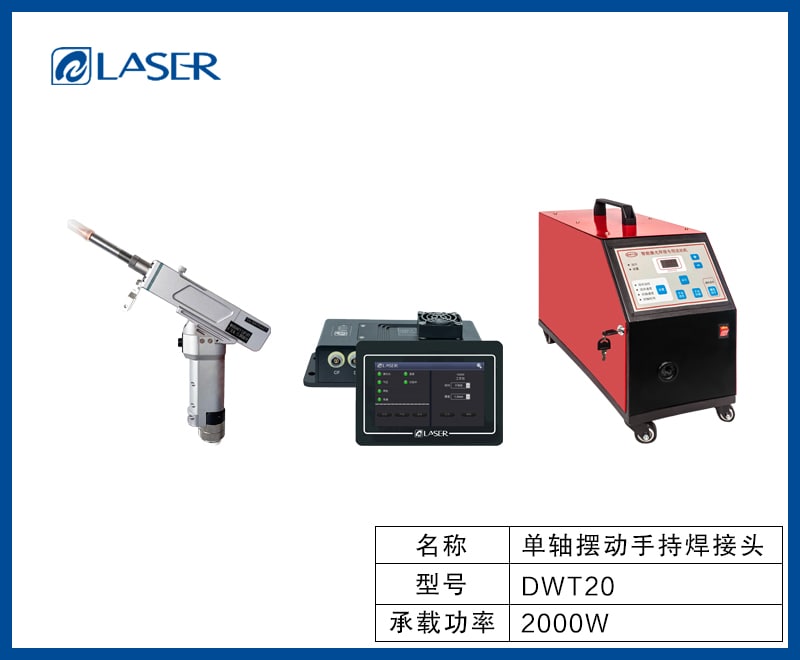

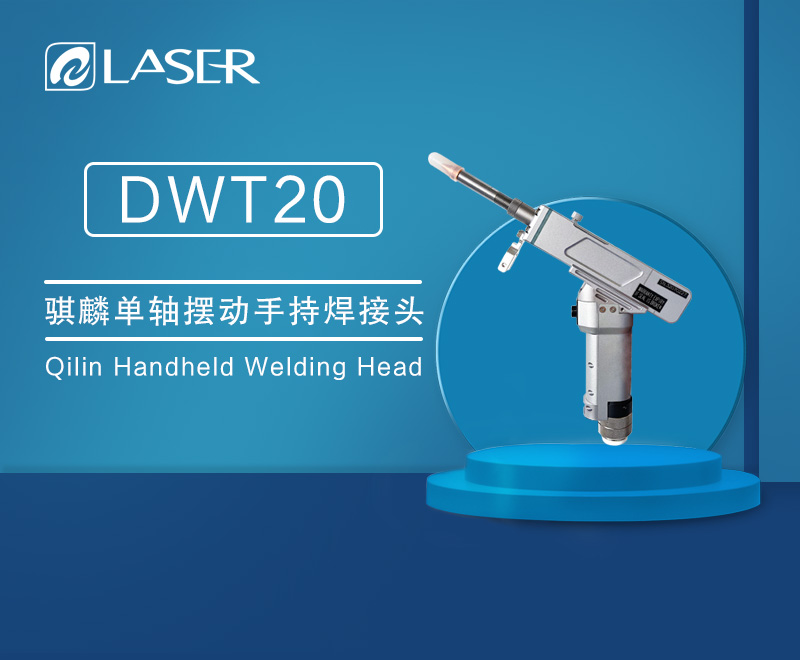

Handheld Welding Head

Name:Handheld Welding Head
Model:DWT20

●Ergonomic design,light and flexible
●Data storage, welding datas can be storaged and called
●Strong anti-interference ability, safe and stable
●Pulling-out type drawer for double protective lens and focus lens,easy to be replaced
●Scientific cooling system, compatible with water cooling and air cooling
●The alarm level can be converted from high to low, and the different laser power can automatically matche the process package

Product introduction

●Ergonomic design,light and flexible

●Data storage, welding datas can be storaged and called

●Strong anti-interference ability, safe and stable

●Pulling-out type drawer for double protective lens and focus lens,easy to be replaced

●Scientific cooling system, compatible with water cooling and air cooling

●The alarm level can be converted from high to low, and the different laser power can automatically matche the process package

Technical parameter

接口类型(Interface):QBH/RD

通光孔径 (Optical Aperture):11mm

承载功率(Power):2000W

摆动幅度(Wave Range):0--5mm

准直焦距(Collimating Length):50mm

摆动频率 (Wave Frequency):0-30HZ Adjustable

聚焦焦距(Focusing Length):150

整体重量(Weight):0.75KG

摆动模式(Wave Mode):
