Industrial welding head

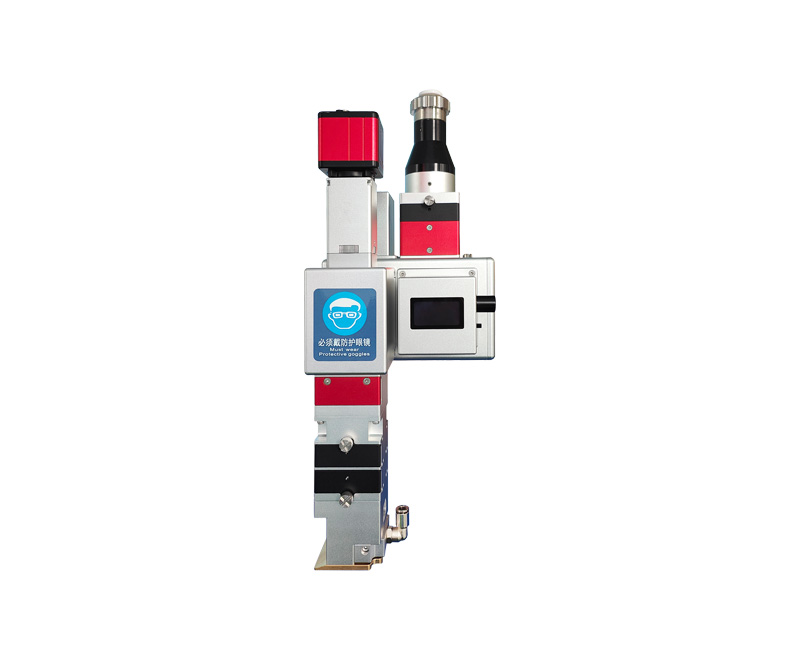

Robot biaxial swing welding joint

Robot biaxial swing welding joint

型号:BWH60

●能实现点、线、圈等多种出光模式。
●带同轴吹气装置焊接头,可有效保证焊缝光亮美观。
●模块化设计,可实现简便快速组装。
●防尘保护镜片,抽屉式安装。
​●镜片可承载6000W功率。

Product introduction

 image.pngIt can realize multiple light output modes such as point, line and circle.

The welding joint with coaxial blowing device can effectively ensure the bright and beautiful weld.

Modular design can realize simple and rapid assembly.

Dust proof protective lens, drawer type installation.

The lens can carry 6000W power.

It can be adapted to various fiber lasers.

Optimized optical design, water cooling, sealing, more lasting and more stable.

Multiple seals, long-term use, internal lens stability.


Technical parameter

准直焦距( Collimating Focal Length ):75

聚焦焦距( Focus FocalLength ):300/ 400

摆动模式( Oscillation Mode ):点、线、圆、椭圆、三角形、“8”字型6种

摆动范围( Swing Range ) :0- 5mm可调

摆动频率( Oscillation Frequency ):0-46HZ可调

整体质量( Overall Qulity):5Kg
