Cutting Head

Fiber laser cutting head Fiber laser cutting head Fiber laser cutting head

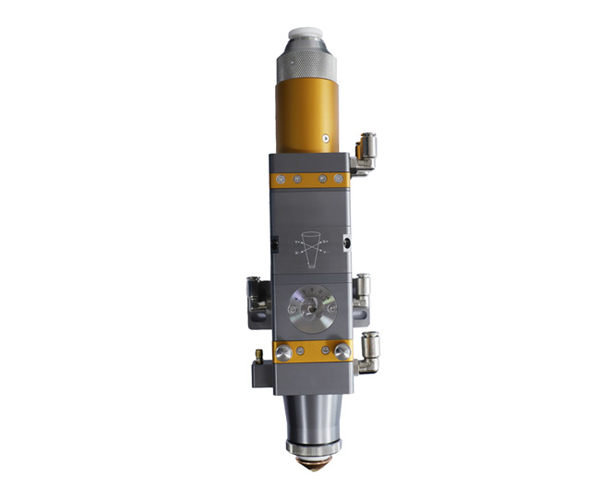

Fiber laser cutting head

Optional range: 1kW manual focusing

Product introduction

1、Double-layer protection lens drawer installation,replace the optional range.

2、Double layer D30composite lens,1000W bearing power.

3、Can be matched with a variety of fiber laser.

4、Optimized optical design,water cooled,sealed,more durable and more stable.

5、Knob adjustment,convenient and afficient.

6、Multi seal,long-term use of internal lens-stability.

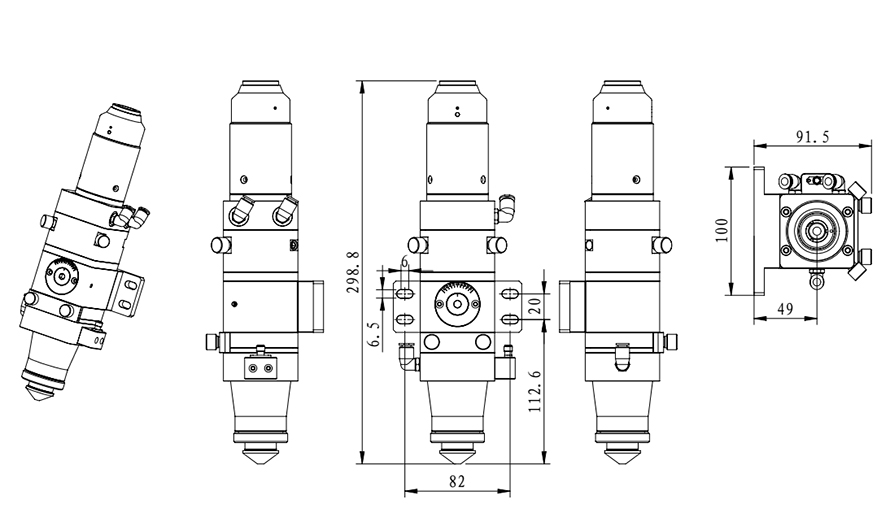

Technical parameter

准直焦距 (Collimating Focal Length: 100/75

聚焦焦距 (Focal Length): 125/150/200

调焦范围 (Focusing Range): ±5

水平调节 (Level Adjustment): ±1.5

通光孔径 (Optical Aperture): 25mm

气压强度 (Pressure lntensity): 29Bar(最大 max)

重量 (Weight): 3.5KG
