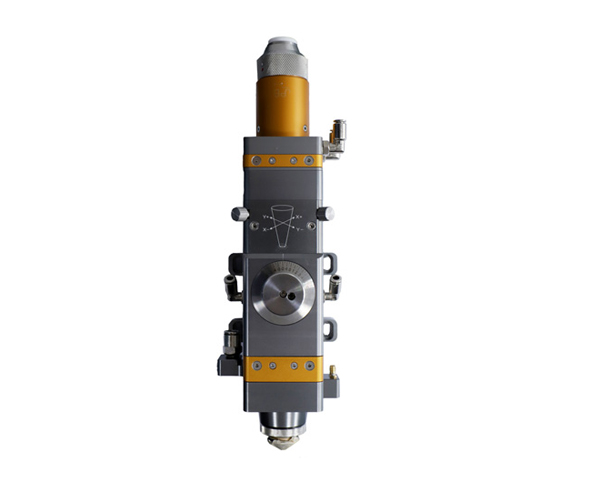

Fiber laser cutting head

Optional range: manual focusing 2KW

Product introduction

1、Single layer protective lens,drawer type installation,easy to replace.

2、D22 or D30 composite lens,the maximum carrying capacity of 2000W.

3、Can be matched with a variety of fiber laser.

4、Optimized optical design,water cooled,sealed,more durable and more stable.

5、Knob adjustment,convenient and afficient.

6、Multi seal,long-term use of internal lens-stability.

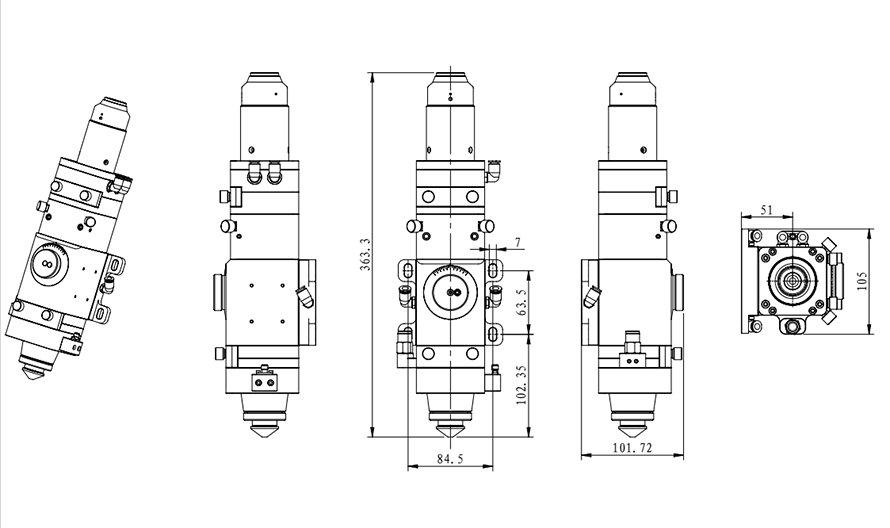

Technical parameter

准直焦距 Collimating Focal Length):100/75

聚焦焦距 (Focal Length):100/125/150

调焦范围 (Focusing Range): ±4

水平调节 (Level Adjustment): ±1.5

通光孔径 (Optical Aperture): 25mm

气压强度(Pressure lntensity): 25Bar(最大 max)

重量 (Weight): 1.9KG
